Writing Commands and Compositions

What a command is#

A command has four lifecycle pieces: initialize() (once at start), execute() (every loop), isFinished() (returns true to end), and end(boolean interrupted) (cleanup). A command runs from when it's scheduled until it finishes or is interrupted.

You can write a full command class, but modern WPILib strongly encourages lambdas and factory methods instead — they cover almost every use case with far less code.

Inline commands with factories#

The Commands utility class and subsystem helper methods build commands inline:

// Run the intake until the button is released (runEnd: run, then stop)
Command intakeCmd = intake.runEnd(intake::run, intake::stop);

// A command that does one thing and finishes immediately
Command stopCmd = Commands.runOnce(intake::stop, intake);

// Run until a condition is met
Command raiseCmd = arm.run(arm::raise).until(arm::atTop);

Common building blocks:

• run(...) — runs an action every loop (never finishes on its own).
• runOnce(...) — runs once and ends.
• runEnd(run, end) — runs an action, then runs an end action when it stops.
• .until(condition) — adds an end condition to any command.
• .withTimeout(seconds) — ends after a time limit.

Using the subsystem's own run/runEnd factory methods automatically adds that subsystem as a requirement.

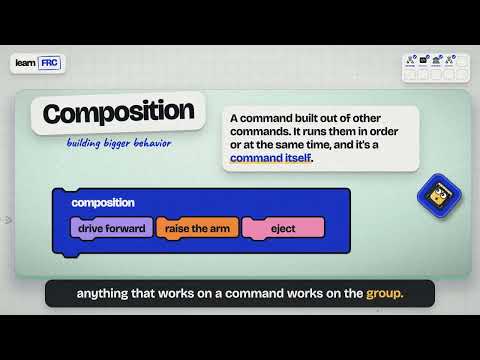

Compositions: building bigger behavior#

Commands are composable — you combine small commands into bigger ones. The main compositions:

• Sequential — run commands one after another:

  Command auto = Commands.sequence(
      drivetrain.driveForward(2.0),
      arm.raiseToScore(),
      intake.eject());


• Parallel — run commands at the same time. Variants include parallel() (waits for all), race() (ends when the first ends), and deadline() (ends when one specific "deadline" command ends).
• Decorators — .andThen(...), .alongWith(...), .raceWith(...) chain commands fluently:

  arm.raiseToScore().andThen(intake.eject());


Because a composition is itself a command, you can nest compositions inside compositions — a full autonomous routine is just one big command.

A practical pattern#

Keep command factories as methods on the subsystem that returns them:

public class Intake extends SubsystemBase {
  public Command intakeCommand() { return runEnd(this::run, this::stop); }
}

Then wiring becomes a one-liner: driver.a().whileTrue(intake.intakeCommand()); (covered next). This keeps behavior close to the hardware it controls and keeps RobotContainer readable.

When to write a class#

Write a dedicated command class only when logic is genuinely complex (lots of state, multiple phases) and a lambda would be unreadable. For most actions, inline factories are cleaner and less error-prone.
